TECH LIGHTING 700TTENVLL2206W TT-ENVISN LED 27K 25D 06IN WH Lighting Solutions

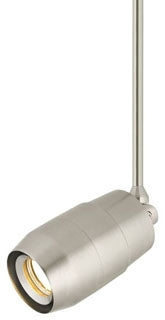

The TECH LIGHTING 700TTENVLL2206W Envision LED head is a precision-engineered lighting fixture designed for commercial applications such as retail stores, libraries, and galleries. This die-cast aluminum LED display head offers versatile illumination with 360° horizontal rotation and 90° vertical pivot, allowing precise beam direction. It integrates a modular LED module and optics system for ease of maintenance and replacement. The fixture features a front air intake design for efficient thermal management, ensuring long-lasting performance. Ideal for electrical distributors and lighting solutions providers seeking reliable, dimmable LED track lighting.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Color Temperature: 2700K
• Beam Spread: 25°
• Length (A): 6 inches
• Finish: White
• Output: 1074+ net lumens
• CRI: 86
• Life: 50,000 hours to 70% lumen maintenance
• Dimmable: to 10%
• Center Beam Candle Power: 4012 CBCP (25° beam)
• No UV Rays
• RoHS Compliant
• Warranty: 5 years

Features

• Die-cast aluminum body for thermal management
• LED module and optics are modular and field-replaceable
• Three interchangeable optics available: 15°, 25°, and 40°
• Front air intake design allows airflow past internal heat sink fins to rear exit vents
• Isolated 18 watt power supply housed within the head to minimize visual impact
• Horizontal locking mechanism for secure fixture positioning
• Compatible with Tech Lighting’s single-circuit T~TRAK systems
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
