TECH LIGHTING 700TTBH9036W TT Horizontal 90° Curve 36 Inch Radius White Track Lighting

The TECH LIGHTING 700TTBH9036W is a pre-bent, single-circuit T~TRAK track system designed for indoor dry locations. This hand-bendable, field-cuttable line-voltage track system is rated for 20 amps and features a horizontal 90° curve with a 36-inch radius, suitable for creating smooth, precise bends in track lighting layouts. The white finish aligns with neutral wiring conventions, making it compatible with a range of lighting fixtures and installations. Ideal for electrical distributors and lighting solutions providers seeking reliable and flexible wire and cable management for commercial or residential switchgear applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700TTBH9036W
• Track System: Single-Circuit T~TRAK
• Current Rating: 20 Amps

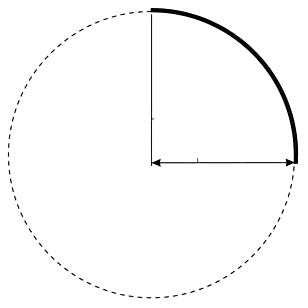

• Curve Type: Horizontal 90° Curve
• Radius: 36 inches
• Finish: White
• Product Weight: 1.3 lbs
• Suitable Location: Indoor Dry Locations Only
• UPC: 756460937584

Features

• Pre-bent for consistent 90° horizontal curve with 36" radius
• Hand-bendable and field-cuttable for custom installation flexibility
• Includes end caps to cover open ends for safety and aesthetic finish
• White side denotes neutral conductor; gray side is hot bus bar for correct wiring orientation
• ETL listed for safety compliance
• Designed for use only with compatible Tech Lighting T~TRAK fixtures and power feeds
