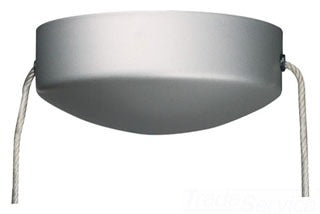

TECH LIGHTING 700SRT75DS SRT 75W Magnetic Surface Transformer

The TECH LIGHTING 700SRT75DS is a low-voltage magnetic surface transformer designed for use with Tech Lighting low voltage lighting systems. It converts 120V input voltage to 12V output voltage, supporting a maximum wattage of 75 watts. This transformer is suitable for dry locations and must be installed by a qualified electrician. It is compatible with low voltage magnetic dimmers and intended for applications requiring reliable power supply for lighting solutions, wire and cable integration, and switchgear suppliers.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700SRT75DS
• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 75 Watts
• Type: Magnetic
• Dimensions: 5.1 in (Width) x 2.2 in (Height) x 5.1 in (Length)
• Product Weight: 4.5 lbs
• Location Rating: Dry locations only
• Certification: ETL Listed

Features

• Designed for surface mounting to a standard 4" junction box with round plaster ring
• Compatible only with low voltage magnetic dimmers to prevent transformer damage
• Suitable for use at any height above finished floor
• Requires end or single-feed center power feed for operation
• Supports low-voltage lighting systems exclusively from Tech Lighting
• Includes dome cover for secure installation
• Installation must comply with local electrical codes
