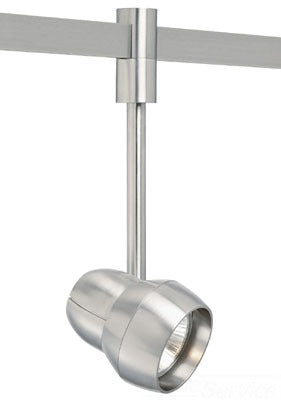

TECH LIGHTING 700PJOM30S06SS PJ-OM PAR30S 06IN Satin Nickel Track Lighting

The TECH LIGHTING 700PJOM30S06SS is a versatile track lighting head designed for use with Tech Lighting Power Jack and T~trak systems. It features a die-cast aluminum head with a satin nickel finish, capable of vertical pivot up to 180° and horizontal rotation up to 350°, with locking mechanisms for secure positioning. This fixture is intended for indoor dry locations and accommodates 120V incandescent PAR30 Short lamps up to 75 watts (lamp not included). It supports up to two lenses or louvers for customized lighting effects.

Specifications

• Manufacturer Part #: 700PJOM30S06SS
• Product Weight: 1.0000 lbs
• Voltage: 120 Volt
• Compatible Lamps: Incandescent PAR16 (GU10 base, up to 50W), PAR20 (E26 base, up to 50W), PAR30 Short and Long (E26 base, up to 75W)
• Dimensions: 6.3" length (160 mm)
• Finish: Satin Nickel
• Indoor Use: Dry Locations Only
• Patent: U.S. PAT. 7,172,332

Features

• Die-cast aluminum construction for durability
• Vertical pivot: 180°, horizontal rotation: 350° with locking mechanisms
• Decorative lens ring with options for frost or solid lens rings
• Holds up to two lenses or louvers (sold separately) for enhanced lighting control
• Compatible with Halo, Juno, or Lightolier track systems with appropriate mounting
• Installation includes an optional locking feature for permanent vertical positioning using a #6-32 set screw and 1/16 Allen wrench
• Safety instructions emphasize use with specified lamp types and wattages to reduce risk of fire and electrical hazards
