TECH LIGHTING 700PJENVLL5218S PJ-ENVISN LED 35K 25 18IN SN Lighting Solutions

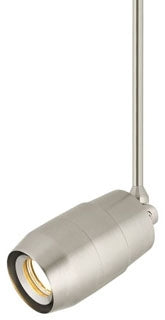

The TECH LIGHTING 700PJENVLL5218S Envision LED Head is a precision-engineered lighting solution designed for commercial applications such as retail stores, libraries, and galleries. This die cast aluminum LED display head offers a full 360° horizontal rotation and a 90° vertical pivot, allowing precise directional lighting. It features a modular LED module and optics for ease of maintenance and replacement, integrated with a dimmable digital logic controller operating in constant current mode. The front air intake design enhances thermal management by channeling airflow past internal heat sink fins to rear exit vents, maintaining optimal fixture temperature without compromising its sleek form.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 3500K (also available in 2700K and 3000K)
• CRI: 86
• Beam Spread Options: 15°, 25°, 40°
• Center Beam Candle Power (CBCP): 25° - 4012 CBCP
• LED Life: 50,000 hours to 70% lumen maintenance
• Dimensions: Length 18 in (150 mm), Height 3.8 in (96 mm)
• Finish: Satin Nickel
• Compatible with Powerjack track system

Features

• Die cast aluminum body for effective thermal management
• Field-replaceable proprietary 18 watt LED module
• Three interchangeable optics for customizable beam spread
• Horizontal locking mechanism for secure positioning
• Dimmable to 10% with digital logic controller
• Front air intake design for optimized airflow and heat dissipation
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• No UV rays emitted; RoHS compliant and mercury-free
• 5-year manufacturer warranty
