TECH LIGHTING 700PJENVLL3412S PJ-ENVISN LED 30K 40 12IN SN Lighting Solutions

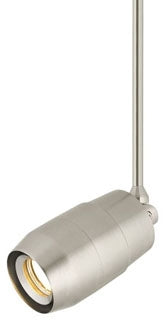

The TECH LIGHTING 700PJENVLL3412S Envision LED Head is a precision-engineered lighting fixture designed for commercial applications such as retail stores, libraries, and galleries. This die cast aluminum LED head offers versatile lighting control with 360° horizontal rotation and 90° vertical pivot, enabling targeted illumination. It features a modular LED module and optics for easy replacement and maintenance. The fixture includes a front air intake design for effective thermal management, ensuring optimal performance and longevity. Ideal for electrical distributors and lighting solutions providers, this product integrates seamlessly into track lighting systems with minimal visual impact.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature Options: 2700K, 3000K, 3500K
• Color Rendering Index (CRI): 86
• Center Beam Candle Power (CBCP): 15° - 5300, 25° - 4012, 40° - 2308
• LED Module Life: 50,000 hours to 70% lumen maintenance
• Dimmable: Yes, to 10%
• Finish: Satin Nickel
• Beam Spread: 40°
• Length: 12 inches
• UPC: 884655108812
• Manufacturer Part Number: 700PJENVLL3412S

Features

• Die cast aluminum body for efficient thermal management
• Modular LED module and interchangeable optics (15°, 25°, 40°) for customizable beam spread
• Front air intake design directs airflow past internal heat sink fins to rear exit vents
• Horizontal locking mechanisms for stable positioning
• 19 watt isolated power supply integrated within the head to minimize visual impact
• Field-replaceable proprietary LED module
• Compatible with up to two PAR16/MR16 lenses or louvers, sold separately
• RoHS compliant and free of mercury and UV rays
• 5-year warranty
