TECH LIGHTING 700PJENVLL3406W PJ-ENVISN LED 30K 40 6IN WH Lighting Solutions

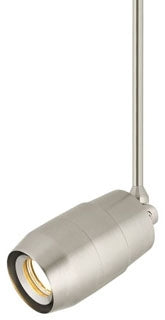

The TECH LIGHTING 700PJENVLL3406W Envision LED head is a precision-engineered lighting fixture designed for commercial applications such as retail stores, libraries, and galleries. Constructed from die cast aluminum, this LED display head offers a full 360° horizontal rotation and 90° vertical pivot to direct light exactly where needed. It features modular LED modules and optics for ease of replacement, with a front air intake design that efficiently cools the fixture by channeling airflow past internal heat sink fins to rear exit vents. This product is suitable for electrical distributors and lighting solution providers looking for versatile, durable LED lighting heads compatible with track lighting systems.

Specifications

• Product Weight: 3.79 lb
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 2700K, 3000K, 3500K
• CRI: 86
• Center Beam Candle Power (CBCP): 15° - 5300, 25° - 4012, 40° - 2308
• LED Module Life: 50,000 hours to 70% lumen maintenance
• Dimensions: Length 5.9" (150 mm), Height 3.8" (96 mm)
• Finish: White

Features

• Die cast aluminum body for effective thermal management
• Horizontal locking mechanism for secure positioning
• Modular LED module and interchangeable optics (15°, 25°, 40°) for customizable beam spread
• Field-replaceable proprietary 18 watt LED module
• Front air intake design for efficient cooling and seamless form
• Dimmable digital logic controller operating in constant current mode
• Compatible with Halo, Juno, and Lightolier 120V single-circuit track systems (with appropriate adapters)
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• No UV rays, mercury-free, and RoHS compliant
• 5-year warranty
