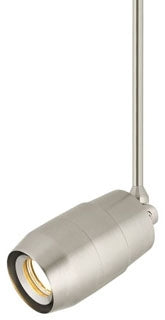

TECH LIGHTING 700PJENVLL3218W PJ-ENVISN LED 30K 25 18IN WH - Envision LED Head Lighting Solutions

The TECH LIGHTING 700PJENVLL3218W Envision LED Head is a precision-engineered lighting fixture designed for commercial applications such as retail stores, libraries, and galleries. This die cast aluminum LED head offers versatile illumination with 360° horizontal rotation and 90° vertical pivot, enabling precise light direction. Featuring a modular LED module and optics for easy replacement, it provides efficient thermal management through a front air intake design that channels airflow past internal heat sink fins to rear exit vents. Ideal for electrical distributors and switchgear suppliers seeking reliable, dimmable LED lighting solutions with minimal visual impact on track systems.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens per watt
• Color Temperature: 3000K
• CRI: 86
• Beam Spread: 25°
• Dimensions: Length 18 in (150 mm), Height 3.8 in (96 mm)
• LED Life: 50,000 hours to 70% lumen maintenance
• Dimmable: Digital logic controller, dimmable to 10%
• Finish: White

Features

• Die cast aluminum body for effective thermal management
• Horizontal locking mechanism for stable positioning
• Modular LED module and interchangeable optics (15°, 25°, 40°) for customizable beam control
• Front air intake design for efficient heat dissipation
• Field-replaceable proprietary 18 watt LED module
• Compatible with up to two PAR16/MR16 lenses or louvers (sold separately)
• No UV emissions, mercury-free, and RoHS compliant
• 5-year manufacturer warranty
