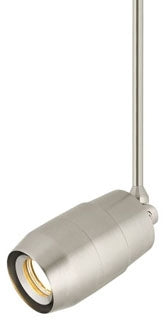

TECH LIGHTING 700PJENVLL3206S PJ-ENVISN LED 30K 25 6IN SN Lighting Solutions

The Tech Lighting Envision LED head is a precision-engineered display lighting solution designed for commercial applications such as retail stores, libraries, and galleries. This die cast aluminum fixture offers versatile illumination with 360° horizontal rotation and 90° vertical pivot, allowing precise beam direction. Its modular LED module and optics enable easy maintenance and replacement. The fixture integrates a dimmable digital logic controller operating in constant current mode, optimized for track lighting systems.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 3000K
• Beam Spread: 25°
• Length: 6 inches (150 mm)
• CRI: 86
• Center Beam Candle Power: 4012 CBCP
• Life: 50,000 hours to 70% lumen maintenance
• Dimmable to 10%
• Finish: Satin Nickel
• UPC: 884655108775

Features

• Die cast aluminum body for thermal management
• Front air intake design allows airflow past internal heat sink fins to rear exit vents
• Horizontal locking mechanisms for secure positioning
• Field-replaceable proprietary 18 watt LED module
• Three interchangeable optics available: 15°, 25°, and 40°
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• Isolated 18 watt power supply integrated within the head to minimize visual impact on track
• No mercury and RoHS compliant
• 5-year warranty
