TECH LIGHTING 700PJENVLL3118W PJ-ENVISN LED 30K 15 18IN WH Lighting Solutions

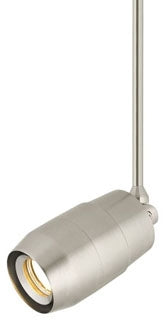

The TECH LIGHTING 700PJENVLL3118W Envision LED head is a versatile lighting solution designed for commercial applications such as retail stores, libraries, and galleries. Constructed from die cast aluminum, this LED head offers a full 360° horizontal rotation and 90° vertical pivot to direct light precisely where needed. It features a modular LED module and optics for easy replacement and maintenance. The fixture incorporates a front air intake design that enables airflow past internal heat sink fins to rear exit vents, ensuring efficient thermal management and fixture longevity. This product is suitable for electrical distributors and lighting solution providers seeking reliable, dimmable LED track lighting components.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 2700K, 3000K, 3500K
• CRI: 86
• Center Beam Candle Power (CBCP): 15° - 5300, 25° - 4012, 40° - 2308
• Life: 50,000 hours to 70% lumen maintenance
• Dimmable to 10%
• Finish: White
• Dimensions: Length 5.9" (150 mm), Height 3.8" (96 mm)

Features

• Die cast aluminum LED head with excellent thermal management
• Full 360° horizontal rotation and 90° vertical pivot with horizontal locking mechanisms
• Modular LED module and interchangeable optics (15°, 25°, 40°) for customized beam spread
• Front air intake design for efficient cooling via internal heat sink fins and rear exit vents
• Isolated 18 watt power supply integrated within the fixture head to minimize visual impact
• Field-replaceable proprietary LED module
• Compatible with PAR16/MR16 lenses or louvers (sold separately)
• No UV rays emitted; RoHS compliant and mercury-free
• 5-year warranty
