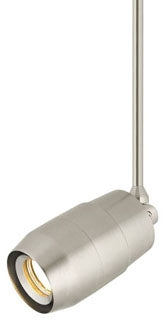

TECH LIGHTING 700PJENVLL2218S PJ-ENVISN LED 27K 25 18IN SN Lighting Solution

The TECH LIGHTING 700PJENVLL2218S Envision LED head is a precision-engineered lighting solution designed for commercial applications such as retail stores, libraries, and galleries. Manufactured by Tech Lighting, this die cast aluminum LED fixture offers a full 360° horizontal rotation and 90° vertical pivot, allowing precise light beam direction. Its modular LED module and optics simplify maintenance and replacement. The fixture includes a front air intake design that promotes efficient heat dissipation, ensuring optimal thermal management. This product is suitable for electrical distributors and lighting solution providers seeking reliable, dimmable LED track lighting components.

Specifications

• Product Weight: 3.79 lb (1.72 kg)
• Power Consumption: 18 watts
• Output: 1074+ net lumens
• Efficacy: 47 net lumens/watt
• Color Temperature: 2700K
• CRI: 86
• Center Beam Candle Power (CBCP): 25° - 4012 CBCP
• LED Module Life: 50,000 hours to 70% lumen maintenance
• Dimmable: Yes, to 10%
• Finish: Satin Nickel
• Dimensions: Length 5.9" (150 mm), Height 3.8" (96 mm)

Features

• Die cast aluminum body for effective thermal management
• LED head pivots vertically 90° and rotates horizontally 360° with horizontal locking mechanisms
• Modular LED module and interchangeable optics (15°, 25°, 40°) for flexible beam spread
• Front air intake design enables airflow past internal heat sink fins to rear exit vents
• Isolated 18 watt power supply integrated within the head to minimize visual impact on track
• Field-replaceable proprietary LED module
• Holds up to two PAR16/MR16 lenses or louvers (sold separately)
• No mercury and RoHS compliant
• 5-year warranty
