TECH LIGHTING 700MPISO9305012S-LED MP-ISO HD 930K 5012IN SN-LED Directional LED Lighting Head

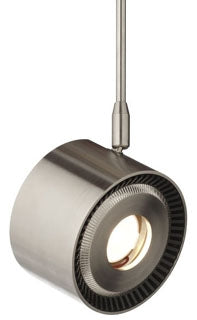

This product is a 16 watt, 850+ lumen directional LED head designed for precision lighting applications. Manufactured by Tech Lighting, it features a machined aluminum housing with an extruded aluminum heat sink for efficient thermal management. The LED head is field-replaceable and upgradeable via a solderless connector, reducing waste by retaining the heat sink with the fixture. It is suitable for indoor dry locations and is commonly used by electrical distributors and lighting solutions providers as part of wire and cable and switchgear supplier offerings. The head rotates 360° and pivots 90° to direct the beam, with an integrated lens holder for optional lenses or louvers (sold separately). The fixture is dimmable to 10% with compatible low-voltage electronic or magnetic dimmers.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• CRI: 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10%
• Warranty: 5 years
• Dimensions: 3.6" length x 2.8" diameter (91 mm x 71 mm)
• Weight: 1.58 lbs
• ETL Listed for indoor dry locations

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder accommodates one lens or louver accessory (sold separately)
• Machined aluminum housing and extruded aluminum heat sink for optimized heat dissipation
• Two-tone satin nickel finish for a modern industrial aesthetic
• Dimmable to 10% with low-voltage electronic or magnetic dimmers (dependent on transformer)
• Designed to minimize waste by retaining heat sink with fixture at end of lamp module life
