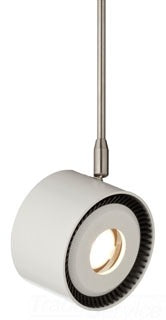

TECH LIGHTING 700MPISO9305006W-LED MP-ISO HD 930K 506IN WH-LED LED Directional Head

The TECH LIGHTING 700MPISO9305006W-LED is a precision-engineered, 16-watt directional LED head designed for advanced lighting solutions. It is suitable for use in indoor environments and is ideal for electrical distributors and switchgear suppliers seeking efficient, upgradeable lighting components. The fixture features a sleek, functional design with a machined aluminum housing and extruded aluminum heat sink to optimize thermal management and performance. Its directional beam can be adjusted with 360° rotation and 90° pivot, making it versatile for various lighting applications.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• CRI: 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Warranty: 5 years
• Product Weight: 1.58 lbs
• Finish: White
• Dimensions: Length 6 inches (506IN)

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder accommodates one lens or louver (sold separately)
• Machined aluminum housing with extruded aluminum heat sink for effective thermal management
• Minimizes waste by retaining heat sink with the fixture at end of lamp module life
• Dimmable to 10% for flexible lighting control
• ETL listed and suitable for indoor dry locations at any height above finished floor
