TECH LIGHTING 700MPISO8305003W-LED MP-ISO HD 830K 503IN WH-LED LED Directional Lighting Head

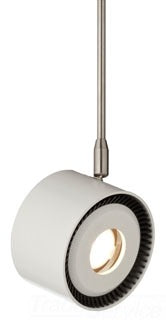

The TECH LIGHTING 700MPISO8305003W-LED is a 16 watt, 850+ lumen directional LED lighting head designed for precision illumination in indoor dry locations. This product is suitable for use in architectural and commercial lighting applications requiring adjustable directional lighting. It features a field-replaceable and upgradeable LED module with a solderless connector, minimizing waste by retaining the heat sink with the fixture. The head rotates 360° and pivots 90° for flexible beam direction. Compatible with low-voltage electronic or magnetic dimmers, it supports dimming down to 10%. This lighting solution is ideal for electrical distributors and lighting solution providers focusing on advanced LED track and monorail systems.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10%
• Warranty: 5 years
• Dimensions: Length 5.03 in (approximate from catalog images)
• Finish: White
• Weight: 1.58 lbs
• Certification: ETL Listed for indoor dry locations

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Field-replaceable LED module with solderless connector for easy maintenance and upgrades
• Heat sink remains with fixture to minimize waste at lamp module end-of-life
• Integrated lens holder accommodates one lens or louver (sold separately)
• Dimmable to 10% with compatible low-voltage electronic or magnetic dimmers
• Machined aluminum housing with sleek, functional design
• ETL listed and approved for use at any height above finished floor indoors
