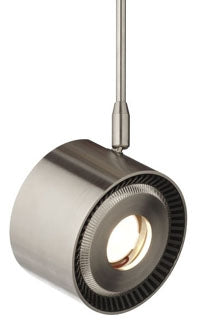

TECH LIGHTING 700MPISO8305003S-LED MP-ISO HD 830K 503IN SN-LED Directional LED Head

The TECH LIGHTING 700MPISO8305003S-LED is a 16 watt directional LED head designed for precise and efficient lighting applications. It is suitable for indoor dry locations and is ideal for use by electrical distributors and lighting solutions providers looking for reliable, upgradeable LED components. The fixture features a machined aluminum housing with an extruded aluminum heat sink that ensures optimal thermal management and longevity. This LED head is compatible with low-voltage electronic or magnetic dimmers and offers flexible beam control with 360° rotation and 90° pivoting capabilities.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% minimum
• Warranty: 5 years
• Dimensions: 3.6" length x 2.8" diameter (91 mm x 71 mm)
• Weight: 1.58 lbs

Features

• Machined aluminum housing with extruded aluminum heat sink for effective thermal management
• Easily field-replaceable and upgradeable LED module with solderless connector
• Heat sink remains with fixture to minimize waste at end of lamp module life
• 360° rotation and 90° pivot for precise beam direction
• Integrated lens holder accommodates one lens or louver (sold separately)
• Dimmable to 10% with compatible low-voltage electronic or magnetic dimmers
• ETL listed for indoor dry locations and approved for use at any height above finished floor
