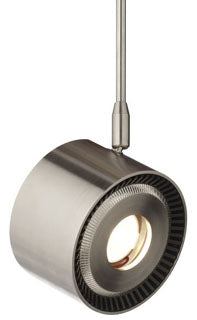

TECH LIGHTING 700MPISO8303012S-LED MP-ISO HD 830K 3012IN SN-LED LED Directional Head

The TECH LIGHTING 700MPISO8303012S-LED is a 16-watt directional LED head designed for precision lighting applications. It is suitable for use in indoor dry locations and offers versatile beam control with 360° rotation and 90° pivoting to direct the light beam accurately. This LED head is ideal for electrical distributors and lighting solutions providers looking for efficient, upgradeable, and dimmable LED components compatible with low-voltage systems. The solderless connector allows easy field replacement and upgrades, reducing waste by retaining the heat sink with the fixture.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• CRI: 80+
• Beam Spread Options: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% minimum with low-voltage electronic or magnetic dimmer (dependent on transformer)
• Warranty: 5 years
• Product Weight: 1.58 lbs
• Dimensions: Length 12 inches (as per model 3012IN)

Features

• Machined aluminum housing with extruded aluminum heat sink for effective thermal management
• Solderless connector enables easy field replacement and upgrades of the LED module
• Heat sink remains with fixture to minimize waste at end of lamp module life
• Integrated lens holder accommodates one lens or louver accessory (sold separately)
• 360° rotation and 90° pivot for flexible beam direction
• Dimmable to 10% for energy-efficient lighting control
• ETL listed for indoor dry locations, suitable for various lighting system configurations including monopoint and monorail
