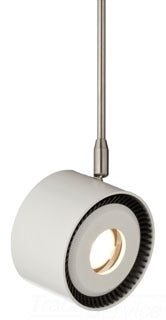

TECH LIGHTING 700MPISO8303003W-LED MP-ISO HD 830K 303IN WH-LED LED Track Lighting Head

The TECH LIGHTING 700MPISO8303003W-LED is a 16-watt directional LED lighting head designed for precision illumination in indoor environments. Ideal for electrical distributors and lighting solutions providers, this LED head is part of a modular system that offers flexible beam direction with 360° rotation and 90° pivoting capabilities. It is suitable for use in wire and cable integrated lighting setups or as part of a switchgear supplier’s product range for retail and commercial lighting applications.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Warranty: 5 years
• Product Weight: 1.58 lbs
• Dimensions: 3.6" length, 2.8" diameter
• Finish: White
• Certification: ETL listed for indoor dry locations

Features

• Machined aluminum housing with integrated extruded aluminum heat sink for thermal management
• Easily field-replaceable and upgradable LED module with solderless connector to minimize waste
• Integrated lens holder accommodates one lens or louver (sold separately) for beam control
• Precision heat sink lines visible through housing indicate functional performance
• Two-tone modern industrial aesthetic with a durable finish
• Compatible with low-voltage electronic or magnetic dimmers for flexible lighting control
