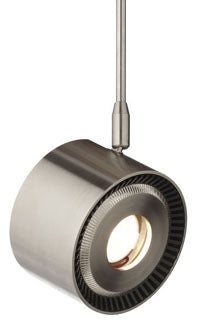

TECH LIGHTING 700MPISO8302006S-LED MP-ISO HD 830K 206IN SN-LED LED Directional Head

The TECH LIGHTING 700MPISO8302006S-LED is a precision 16-watt directional LED head designed for indoor dry locations. It features a machined aluminum housing with an extruded aluminum heat sink, providing efficient thermal management. This LED head is suitable for lighting solutions requiring adjustable beam direction, as it rotates 360° and pivots 90° to direct the beam precisely. The integrated lens holder accommodates one lens or louver (sold separately), enhancing beam control. The LED module is field-replaceable and upgradeable through a solderless connector, supporting sustainability by minimizing waste. This product is ideal for electrical distributors and switchgear suppliers offering advanced lighting components in wire and cable systems.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spreads: 16°, 28°, 45°
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Warranty: 5 years
• Product Weight: 1.58 lbs
• Dimensions: 3.6" length, 2.8" diameter
• ETL Listed for indoor dry locations

Features

• Machined aluminum housing with extruded aluminum heat sink for effective heat dissipation
• Field-replaceable and upgradeable LED module via solderless connector
• 360° rotation and 90° pivot for precise beam direction
• Integrated lens holder for additional beam control accessories
• Two-tone satin nickel finish providing a modern industrial aesthetic
• Compatible with low-voltage dimmers for adjustable lighting levels
• Minimizes waste by retaining heat sink with fixture at lamp module end-of-life
