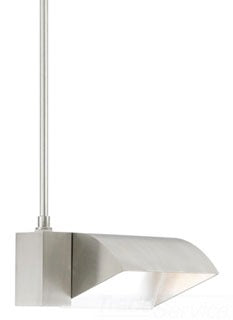

TECH LIGHTING 700MPIBISWWSL303Z MP-IBIS WW SIN LED3000 03 Z LED Lighting Fixture

The TECH LIGHTING 700MPIBISWWSL303Z is a low-voltage LED lighting fixture designed for indoor dry locations. It is part of the IBISS series, engineered with die-cast aluminum for durability and minimalist design. This lighting solution is suitable for precise lighting applications requiring adjustable beam direction, making it ideal for electrical distributors and lighting solutions providers focusing on architectural and commercial environments. The fixture offers vertical pivoting up to 330° and horizontal rotation up to 360°, with an embedded lens to reduce glare and shadowing while maintaining high efficiency.

Specifications

• Power Consumption: 10 watts
• Color Temperature: 3000 K
• Output: 700 lumens
• Efficiency: 70 lumens per watt
• Color Rendering Index (CRI): 80
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Weight: 1.33 lbs
• Dimensions: Length 3" (approximately 133 mm height, 32 mm width as per product diagrams)
• Finish: Satin Nickel (Z code)
• Certification: ETL listed for indoor dry locations

Features

• Constructed from die-cast aluminum for strength and heat dissipation
• Minimalist design enabling LED performance beyond traditional lamping
• Vertical pivot up to 330° and horizontal rotation up to 360° for precise beam control
• Embedded lens reduces glare and shadowing while maximizing efficiency
• Available as single 10W module with optional flood or asymmetric wall wash beam patterns
• Suitable for integration into lighting distributor and switchgear supplier portfolios
• 5-year warranty for reliable performance
