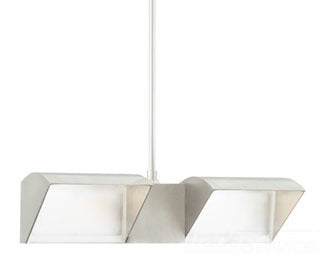

TECH LIGHTING 700MPIBISWWDL318S MP-IBIS WW DBL LED3000 18 S - LED Lighting Fixture

The TECH LIGHTING 700MPIBISWWDL318S MP-IBIS WW DBL LED3000 18 S is a precision-engineered LED lighting fixture designed for architectural and commercial indoor lighting applications. Manufactured by Tech Lighting, this product is ideal for electrical distributors and lighting solution providers seeking high-performance, low-voltage LED fixtures. It features advanced pivoting capabilities for versatile beam direction and is suitable for integration in wire and cable systems or switchgear setups requiring efficient, dimmable lighting.

Specifications

• Manufacturer Part #: 700MPIBISWWDL318S
• Product Weight: 1.33 lbs
• Power Consumption: 20 watts (double version)
• Color Temperature: 3000° K
• Output: 1400 lumens
• Efficiency: 70 lumens per watt
• Color Rendering Index (CRI): 80
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Dimensions: Length 18 inches (457 mm)
• Finish: Satin Nickel
• Certification: ETL listed for indoor dry locations

Features

• Constructed of die-cast aluminum for durability and heat dissipation
• Double LED modules pivot independently with 330° vertical and 360° horizontal rotation for precise lighting control
• Available in double wall wash configuration for asymmetrical light distribution
• Embedded lens design diffuses glare and minimizes shadowing while maintaining high efficiency
• Dimmable to 10% for flexible lighting environments
• Includes 4" round flush canopy for streamlined installation
• Suitable for use with Tech Lighting’s low-voltage systems including monopoint and monorail
