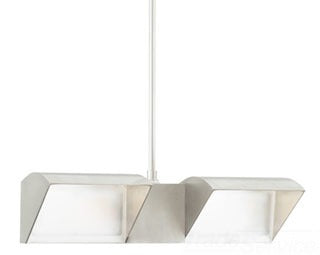

TECH LIGHTING 700MPIBISWWDL312Z MP-IBIS WW DBL LED3000 12 Z - LED Architectural Lighting

The TECH LIGHTING 700MPIBISWWDL312Z is a precision-engineered LED architectural lighting fixture designed for indoor dry locations. Manufactured by Tech Lighting, this product is ideal for electrical distributors and lighting solutions providers seeking advanced, energy-efficient illumination for commercial and retail environments. It features a double-head design with wall wash optics, delivering high-performance lighting with adjustable LED modules for precise beam control. Suitable for integration in wire and cable systems and offered by switchgear suppliers focused on modern, low-voltage lighting applications.

Specifications

• Power Consumption: 20 watts
• Color Temperature: 3000° K
• Output: 1400 lumens
• Efficiency: 70 lumens per watt
• Color Rendering Index (CRI): 80
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Product Weight: 1.33 lbs
• Dimensions (Double Flood): Length 10.3" (261 mm), Height 3.2" (81 mm)
• Certification: ETL listed for indoor dry locations

Features

• Constructed of die-cast aluminum for durability and heat dissipation
• Double LED modules pivot independently, allowing vertical rotation up to 330° and horizontal rotation up to 360° for precise aiming
• Available in flood or asymmetric wall wash styles to suit different lighting applications
• Embedded lens design reduces glare and shadowing while maintaining high efficiency
• Minimalist and award-winning design that maximizes LED performance beyond traditional lamping capabilities
• Includes a 4" round flush canopy for streamlined installation
• 5-year warranty for reliable long-term use
