TECH LIGHTING 700MPIBISWWDL203Z MP-IBIS WW DBL LED2700 03 Z - LED Architectural Lighting

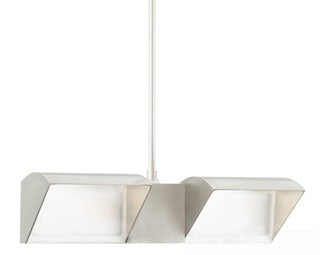

The TECH LIGHTING 700MPIBISWWDL203Z is a double-head LED lighting fixture designed for architectural lighting applications. Constructed of die-cast aluminum, this fixture offers precise lighting control with independently pivoting LED modules. Suitable for indoor dry locations, it is ideal for electrical distributors and lighting solution providers focusing on high-performance, energy-efficient LED fixtures. The product supports dimming to 10% using low-voltage electronic or magnetic dimmers and is compatible with wire and cable systems for flexible installation.

Specifications

• Power Consumption: 20 watts
• Color Temperature: 2700°K
• Output: 1400 lumens
• Efficiency: 70 lumens per watt
• Color Rendering Index (CRI): 80
• Life: 50,000 hours to L70
• Dimming: 10% minimum
• Weight: 1.33 lbs
• Dimensions (Double Flood): 10.3" length x 3.2" height (261 mm x 81 mm)
• Material: Die-cast aluminum
• Finish: Antique Bronze
• Certification: ETL listed for indoor dry locations

Features

• Double LED module with independent pivoting for precise directional lighting
• Vertical pivot up to 330°, horizontal rotation up to 360° for flexible aiming
• Embedded lens reduces glare and shadowing while maintaining high efficiency
• Available in flood or asymmetric wall wash styles
• Dimmable with low-voltage electronic or magnetic dimmers
• Minimalist design awarded Lightfair Innovation Award for design excellence
• Includes 4" round flush canopy for streamlined installation
