TECH LIGHTING 700MPHEL4024S-LED MP-HELIOS 40 24 IN SN-LED LED Lighting Solution

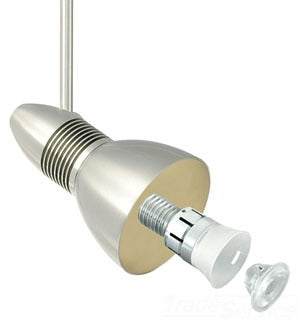

The TECH LIGHTING 700MPHEL4024S-LED MP-HELIOS is a 6-watt directional LED lighting fixture designed for precision beam control in architectural and commercial lighting applications. This lighting solution is suitable for electrical distributors and switchgear suppliers seeking efficient, customizable LED heads compatible with Tech Lighting's monorail and monopoint systems. The LED module is field-replaceable with a screw-in base, enabling easy maintenance while minimizing waste. The fixture features a 360° rotation and 260° pivot for flexible beam direction, making it ideal for focused illumination needs.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° or 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Weight: 0.29 lbs
• Finish: Satin Nickel
• Dimensions: Length 24 inches

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• 360° rotation and 260° pivot for precise beam direction
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% for flexible lighting control
• Includes 4" round flush canopy
• Designed for use in monorail and monopoint lighting systems
• 5-year warranty
