TECH LIGHTING 700MPHEL4012Z-LED MP-HELIOS 40 12 IN BZ-LED LED Directional Head

The TECH LIGHTING 700MPHEL4012Z-LED MP-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. Suitable for electrical distributors and switchgear suppliers, this LED fixture offers field-replaceable lamp modules with a screw-in base, optimizing maintenance and minimizing waste. Its compact size and versatile beam rotation make it ideal for wire and cable lighting applications requiring adjustable directional illumination.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° - 748 candle power; 40° - 550 candle power
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.2900 lbs

Features

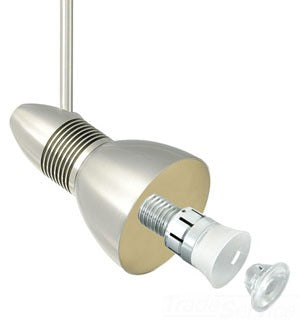

• Field-replaceable LED lamp module included
• 360° rotation and 260° pivot for precise beam direction
• Aluminum heat sink for effective thermal management
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% for flexible lighting control
• Includes 4" round flush canopy
