TECH LIGHTING 700MPHEL4012S-LED MP-HELIOS 40 12 IN SN-LED LED Directional Head

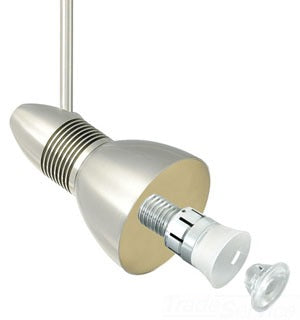

The TECH LIGHTING 700MPHEL4012S-LED MP-HELIOS is a 6-watt directional LED lighting head designed for precise beam control in architectural and commercial lighting applications. Its field-replaceable LED module with a screw-in base allows easy maintenance while the integrated aluminum heat sink ensures efficient thermal management. The head rotates 360° and pivots 260° to direct light accurately, making it suitable for customizable lighting solutions. This product is ideal for electrical distributors and lighting solution providers seeking reliable LED components compatible with various accessories.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000°K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Angles: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.29 lbs

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for effective thermal management
• 360° rotation and 260° pivot for flexible beam direction
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% for adjustable lighting control
• Includes 4" round flush canopy
