TECH LIGHTING 700MPHEL4006Z-LED MP-HELIOS 40 06 IN BZ-LED LED Directional Head

The TECH LIGHTING 700MPHEL4006Z-LED MP-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. Ideal for electrical distributors and switchgear suppliers, this fixture features a field-replaceable LED module with a screw-in base, an aluminum heat sink for thermal management, and adjustable beam direction with 360° rotation and 260° pivot. It supports dimming to 10% with compatible low-voltage electronic or magnetic dimmers, making it suitable for a variety of wire and cable lighting applications.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms / watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.2900 lbs

Features

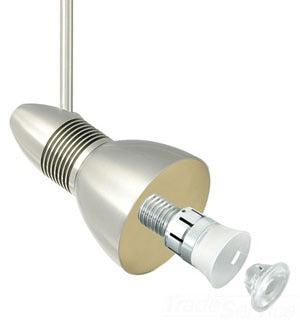

• Field-replaceable LED lamp module included
• Aluminum heat sink for effective thermal management
• Beam head rotates 360° and pivots 260° for precise lighting direction
• Available with 25° and 40° beam spread optics
• Accessories available separately for customization
• Dimmable to 10% with low-voltage electronic or magnetic dimmers
