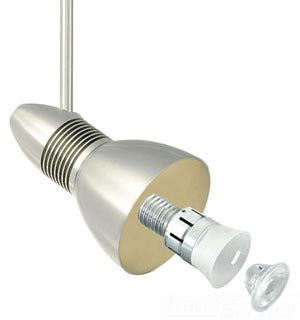

TECH LIGHTING 700MPHEL2524Z-LED MP-HELIOS 25 24 IN BZ-LED LED Lighting Solution

The TECH LIGHTING 700MPHEL2524Z-LED MP-HELIOS is a 6-watt directional LED head designed for precision lighting applications. Suitable for use by electrical distributors and lighting solution providers, this fixture features a field-replaceable LED module with a screw-in base, enabling easy maintenance and reducing waste. The aluminum heat sink ensures effective thermal management, while the head rotates 360° and pivots 260° for versatile beam direction. Ideal for wire and cable installations in architectural and commercial lighting, this product supports dimming to 10% with compatible low-voltage electronic or magnetic dimmers.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Dimming: 10%
• Warranty: 5 years
• Dimensions: Length 2.2" (55 mm)

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• 360° rotation and 260° pivot for beam adjustment
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable with low-voltage electronic or magnetic dimmers
• Includes 4" round flush canopy
