TECH LIGHTING 700MPHEL2524S-LED MP-HELIOS 25 24 IN SN-LED LED Lighting Solution

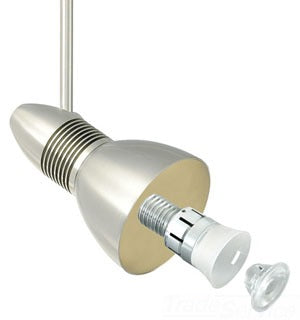

The TECH LIGHTING 700MPHEL2524S-LED MP-HELIOS is a 6-watt directional LED lighting head designed for precise beam control in architectural and commercial lighting applications. This lighting solution features a field-replaceable LED module with a screw-in base, ensuring easy maintenance and minimal waste. The head offers 360° rotation and 260° pivot for flexible beam direction. It is compatible with various accessory styles and colors to customize the fixture, supporting dimming to 10% with low-voltage electronic or magnetic dimmers. Ideal for electrical distributors and lighting solution providers seeking efficient, customizable LED fixtures.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85 CRI
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.29 lbs

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• 360° rotation and 260° pivot for beam direction
• Compatible with multiple accessory styles and colors (sold separately)
• 25° and 40° beam spread optics available
• Dimmable with low-voltage electronic or magnetic dimmers
• Includes 4" round flush canopy
