TECH LIGHTING 700MPHEL2518S-LED MP-HELIOS 25 18 IN SN-LED LED Directional Head

The TECH LIGHTING 700MPHEL2518S-LED MP-HELIOS is a 6-watt directional LED lighting head designed for precise beam control in architectural and commercial lighting applications. Suitable for use by electrical distributors and lighting solutions providers, this LED module features a screw-in base for easy field replacement and an aluminum heat sink for efficient thermal management. The head rotates 360° and pivots 260°, allowing versatile beam direction. Compatible with various accessories for customization, it supports dimming to 10% with low-voltage electronic or magnetic dimmers, making it an ideal component for wire and cable installations and switchgear supplier projects requiring adjustable, energy-efficient lighting.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.29 lbs

Features

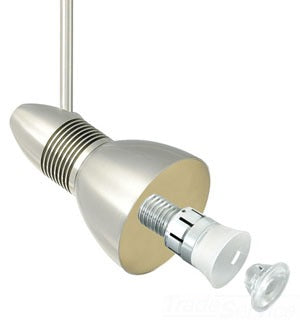

• Field-replaceable LED lamp module with screw-in base
• Aluminum heat sink for effective thermal management
• 360° rotation and 260° pivot for precise beam aiming
• Compatible with a wide range of accessory styles and colors (sold separately)
• Dimmable to 10% with low-voltage electronic or magnetic dimmers
• Includes 4" round flush canopy
