TECH LIGHTING 700MPHEL2512Z-LED MP-HELIOS 25 12 IN BZ-LED Directional LED Lighting

The TECH LIGHTING 700MPHEL2512Z-LED MP-HELIOS is a 6-watt directional LED head designed for precision lighting applications. It is suitable for electrical distributors and lighting solutions providers seeking efficient, customizable LED fixtures. The product features a field-replaceable LED lamp module with a screw-in base, ensuring ease of maintenance and minimal waste. The head rotates 360° and pivots 260° to direct the beam accurately, making it ideal for wire and cable installations or as part of switchgear supplier offerings where adjustable lighting is required.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.2900 lbs

Features

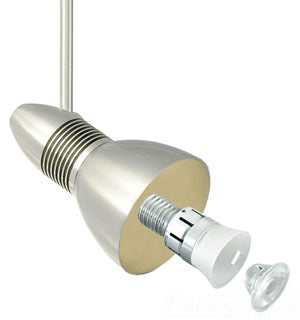

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• Head rotates 360° and pivots 260° for precise beam direction
• 25° and 40° optics available
• Dimmable to 10% with compatible low-voltage electronic or magnetic dimmers
• Includes 4" round flush canopy
• Accessory compatible for customization (sold separately)
