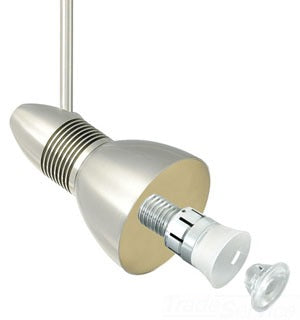

TECH LIGHTING 700MPHEL2512S-LED MP-HELIOS 25 12 IN SN-LED LED Directional Head

The TECH LIGHTING 700MPHEL2512S-LED MP-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. It is suitable for use in architectural and commercial lighting applications, offering adjustable beam direction with 360° rotation and 260° pivot. This product is ideal for electrical distributors and switchgear suppliers looking to provide customizable, energy-efficient lighting components with quality thermal management.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.2900 lbs
• Dimensions: Length 2.2" (55 mm)

Features

• Field-replaceable LED lamp module with screw-in base
• Aluminum heat sink for thermal management
• Head rotates 360° and pivots 260° for precise beam direction
• Compatible with multiple accessory styles and colors (sold separately)
• Dimmable to 10% for flexible lighting control
• Includes 4" round flush canopy
