TECH LIGHTING 700MPHEL2506Z-LED MP-HELIOS 25 06 IN BZ-LED Directional LED Lighting Head

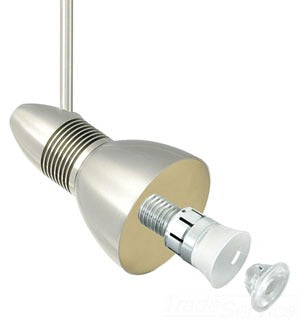

The TECH LIGHTING 700MPHEL2506Z-LED MP-HELIOS is a 6-watt directional LED lighting head designed for precise beam control in architectural and commercial lighting applications. This product is suitable for electrical distributors and lighting solutions providers seeking efficient, customizable LED fixtures. The head rotates 360° and pivots 260°, allowing flexible beam direction. It features a field-replaceable LED lamp module with a screw-in base and an aluminum heat sink for thermal management, minimizing waste at the end of the lamp module life. Compatible with a variety of accessory styles and colors (sold separately), it supports dimming to 10% with low-voltage electronic or magnetic dimmers based on the transformer.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.29 lbs

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for efficient thermal management
• 360° rotation and 260° pivot for precise beam aiming
• Supports 25° and 40° beam spread optics
• Compatible with multiple accessory styles and colors (sold separately)
• Dimmable to 10% with compatible low-voltage dimmers
