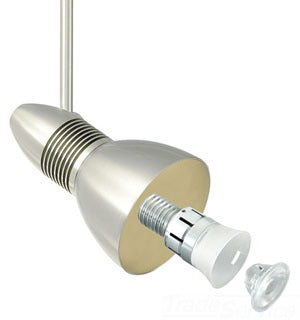

TECH LIGHTING 700MPHEL2503S-LED MP-HELIOS 25 03 IN SN-LED LED Lighting Solution

The TECH LIGHTING 700MPHEL2503S-LED MP-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. Ideal for electrical distributors and switchgear suppliers focusing on advanced wire and cable lighting applications, this fixture offers a field-replaceable LED module with a screw-in base, minimizing waste by retaining the heat sink with the fixture. The head rotates 360° and pivots 260° to direct light effectively. Compatible with a variety of accessory styles and colors (sold separately), it supports dimming to 10% with low-voltage electronic or magnetic dimmers based on the transformer.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming Capability: 10%
• Warranty: 5 years
• Product Weight: 0.2900 lbs

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• Head rotates 360° and pivots 260° for precise beam direction
• Available 25° and 40° beam optics
• Accessories available in multiple styles and colors (sold separately)
• Dimmable to 10% with compatible low-voltage electronic or magnetic dimmers
