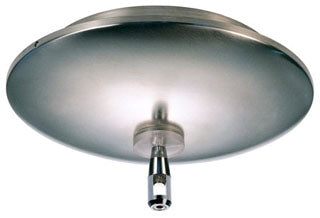

TECH LIGHTING 700MOSRT624DB MO SRT 600W 24V W/DMC BLACK Surface Transformer

This surface transformer by Tech Lighting is designed for low-voltage lighting systems, converting 120V input to 24V output with a magnetic AC type. It is suitable for indoor dry locations and intended for use with Tech Lighting low voltage lighting systems, providing a reliable power source for lighting distributors and switchgear suppliers requiring efficient wire and cable management in lighting solutions.

Specifications

• Manufacturer Part #: 700MOSRT624DB
• Input Voltage: 120V
• Output Voltage: 24V
• Wattage: 600 Watts
• Type: Magnetic AC
• Finish: Black
• Weight: 20.4 lbs
• Includes Dimming Coil: Yes (built-in)
• Compatible Dimmer Type: Low-voltage magnetic dimmer only
• Mounting: Surface mount to standard 4" ceiling junction box with round plaster ring
• To Drop from Ceiling: 5 inches
• Certification: ETL Listed for indoor dry locations

Features

• Built-in dimming coil for low-voltage magnetic dimming applications
• Magnetic transformer suitable for use with low-voltage lighting systems
• Compatible only with low-voltage magnetic dimmers to prevent transformer failure
• Designed for indoor dry locations and approved for any height above finished floor
• Includes mounting hardware for secure installation
• Supports up to 600 watts load with a maximum recommended load of 70% when used with LED fixtures to prevent inrush current issues
• Installation requires qualified electrician following local electrical codes
