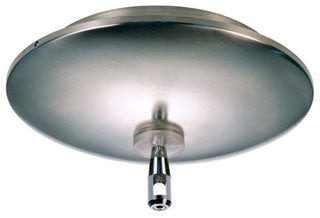

TECH LIGHTING 700MOSRT324DS MO SRT 300W 24V Magnetic Surface Transformer

The TECH LIGHTING 700MOSRT324DS is a magnetic surface transformer designed for low-voltage lighting systems. It converts 120V input to 24V output with a power capacity of 300 watts, making it suitable for indoor dry locations. This transformer is intended for use with Tech Lighting low voltage lighting systems and is an essential component for electrical distributors and lighting solution providers requiring reliable wire and cable voltage conversion.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOSRT324DS
• Input Voltage: 120V
• Output Voltage: 24V
• Wattage: 300 watts
• Type: Magnetic AC
• Compatible Dimming: Low-Voltage Magnetic
• Mounting: Surface mount to standard 4" ceiling junction box with round plaster ring
• Dimensions: 9.1" diameter x 4" drop from ceiling
• Finish: Satin Nickel
• Product Weight: 12.15 lbs
• ETL Listed for indoor dry locations

Features

• Built-in dimming coil compatible only with low voltage magnetic dimmers
• Suitable for use with Tech Lighting low voltage lighting systems only
• Includes mounting hardware for secure installation
• Installation requires qualified electrician and adherence to local electrical codes
• Designed for safe operation with built-in protection against transformer failure when used with specified dimmers
• Compatible with power extender and plug-in options for flexible installation
