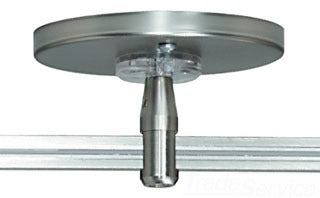

TECH LIGHTING 700MOSRR30ES MO-REMOD TRNS 300W EL SN120/12 Transformer

The TECH LIGHTING 700MOSRR30ES is a remodel recessed electronic transformer designed for low-voltage lighting systems. It installs above the ceiling in a recessed housing, providing a clean and concealed power feed solution for monorail and low-voltage lighting applications. This transformer is suitable for dry locations and must be installed by a qualified electrician in accordance with local electrical codes. It is compatible with low voltage electronic dimmers specifically designed for such applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700MOSRR30ES
• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 300 Watts
• Type: Electronic DC
• Installation: Remodel recessed, above ceiling, requires 4.5” diameter hole
• Compatible Dimmer Type: Low-voltage electronic dimmer
• Weight: 2.02 lbs
• Location: Dry locations only
• Clearance: Minimum 3 inches insulation clearance required
• Reset: Reset by power cycling (off/on) after short circuit or overload

Features

• Integral power feed eliminates the need for a separate power feed
• Fast-acting short circuit and overload protection for system safety
• Compact, low-profile design with a decorative canopy visible below ceiling
• Easy installation with flexible conduit connection and wing screws for secure mounting
• Compatible with Tech Lighting low voltage lighting systems only
• Not suitable for installation in insulated ceilings
• Requires installation in close proximity to existing junction box or direct power feed in new construction
