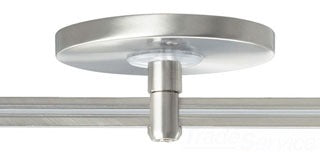

TECH LIGHTING 700MOSRR301ES MO-RMD TR LO-P 300W E SN120/12 Remodel Recessed Transformer

The TECH LIGHTING 700MOSRR301ES is a Remodel Recessed Transformer designed for low-voltage lighting systems. It installs above the ceiling in a recessed housing, providing a clean and concealed power feed solution for monorail lighting applications. Suitable for dry locations and approved for use at any height above finished floors, this transformer integrates seamlessly with Tech Lighting low voltage lighting systems. It features integral power feed, fast-acting short circuit and overload protection, and is compatible with low-voltage electronic dimmers.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOSRR301ES
• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 300 Watts
• Type: Electronic DC
• Dimensions: 5 in (Width) x 2.4 in (Height) x 5 in (Length)
• Product Weight: 2.5 lbs
• Installation: Remodel recessed above ceiling with 4.5" diameter hole
• Compatible Dimmer Type: Low-voltage electronic dimmer
• Location: Suitable for dry locations only

Features

• Integral power feed eliminates need for separate power feed
• Fast-acting short circuit and overload protection with reset capability via power cycling
• Concealed installation with only decorative canopy visible below ceiling
• Requires installation by a qualified electrician in accordance with local electrical codes
• Must be installed directly above the rail run with insulation kept at least 3 inches away
• Compatible only with Tech Lighting low voltage lighting systems
• Not suitable for insulated ceilings
• Requires use of low voltage electronic dimmers to prevent transformer damage
