TECH LIGHTING 700MOSRR15ES MO-REMOD TRNS 150W EL SN120/12 Transformer

The TECH LIGHTING 700MOSRR15ES Remodel Recessed Transformer is designed for use in low-voltage lighting systems, providing an integral power feed for monorail lighting installations. Intended for dry locations, it installs recessed above the ceiling with only the decorative canopy visible, offering a clean and compact solution for electrical distributors and lighting solutions providers. This transformer is suitable for remodel applications where access to existing junction boxes is available and is compatible with Tech Lighting low voltage lighting systems. It includes built-in short circuit and overload protection for safe operation.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOSRR15ES
• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 150 Watts
• Type: Electronic DC
• Weight: 2.02 lbs
• Installation: Remodel recessed, above ceiling
• Compatible Dimmers: Low voltage electronic dimmers
• Location Suitability: Dry locations only
• Mounting Hole Size: 4.5-inch diameter ceiling hole required

Features

• Integral power feed eliminates the need for a separate power feed
• Fast-acting short circuit and overload protection with reset via power cycling

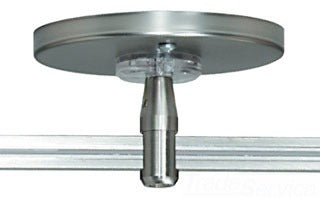

• Compact design with decorative canopy visible below ceiling for clean aesthetic
• Requires installation by a qualified electrician in accordance with local electrical codes
• Suitable for use with Tech Lighting low voltage lighting systems only
• Not compatible with insulated ceilings or power extenders
• Must maintain at least 3 inches clearance from insulation
