TECH LIGHTING 700MOSRR151ES MO-RMD TR LO-P 150W E SN120/12 Remodel Recessed Transformer

The TECH LIGHTING 700MOSRR151ES Remodel Recessed Transformer is designed for low-voltage lighting systems, providing a clean and compact power solution for monorail lighting installations. This recessed transformer installs above the ceiling, concealing the housing and leaving only a decorative canopy visible. It is suitable for dry locations and intended for use with Tech Lighting low voltage lighting systems. The transformer features an integral power feed, eliminating the need for a separate power feed, and is compatible with low-voltage electronic dimmers. It is ideal for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear supplier applications requiring recessed low-voltage power supply integration.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOSRR151ES
• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 150 Watts
• Type: Electronic DC
• Compatible Dimmer Type: Low-Voltage Electronic
• Product Weight: 1.08 lbs
• Installation Location: Above ceiling, dry locations only
• Installation Hole Diameter: 4.5 inches
• Insulation Clearance: Minimum 3 inches from transformer and housing

Features

• Integral power feed for simplified installation directly above the rail run
• Fast-acting short circuit and overload protection with easy reset via wall switch

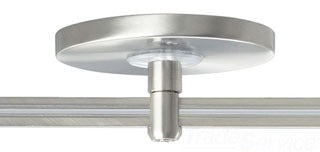

• Concealed housing for a clean aesthetic with only the decorative canopy visible
• Compatible with low-voltage electronic dimmers designed for LED and low-voltage applications
• Requires installation by a qualified electrician in accordance with local electrical codes
• Suitable for use only in dry locations and not for insulated ceilings
• Includes thermal protector wire for enhanced safety
