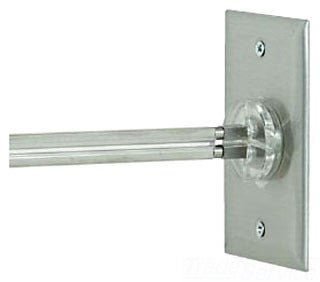

TECH LIGHTING 700MOPRCDS Rectangular Direct-End Power Feed

The TECH LIGHTING 700MOPRCDS is a rectangular direct-end power feed canopy designed to bring power from a remote transformer to the rail at the end of a lighting run. This component mounts to a standard gem or single gang junction box, providing a secure and compliant connection point for low-voltage lighting systems. It is suitable for indoor dry locations and is intended for use by electrical distributors and switchgear suppliers integrating lighting solutions with wire and cable systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOPRCDS
• Product Weight: 0.93 lbs
• UPC: 756460628932
• Mounting: Gem or single gang junction box (provided by electrician)
• Installation: NEC compliant junction boxes with minimum 2" depth and minimum 6 cubic inch volume
• Location: Indoor dry locations only

Features

• Rectangular canopy design for direct-end power feed
• Mounts perpendicular to the lighting run for end-of-run power feed
• Compatible with low-voltage wires from remote transformers
• Mounting hardware: Two #6-32 screws included for secure installation
• Facilitates connection of MonoRail lighting systems via conductive rail connectors
• ETL listed for safety and compliance
