TECH LIGHTING 700MOP4CDZ MO Direct End Power Feed Canopy - Electrical Distributor Lighting Solutions

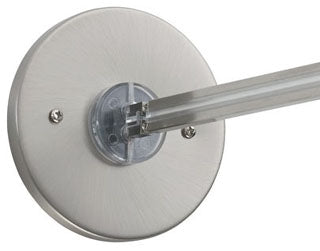

The TECH LIGHTING 700MOP4CDZ is a 4-inch round direct-end power feed canopy designed to bring power from a remote transformer to the rail at the end of a lighting run. It mounts to a standard 4-inch junction box with a round plaster ring and is intended for indoor dry locations. This product is suitable for electrical distributors and lighting solution providers requiring reliable wire and cable connectivity within switchgear systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOP4CDZ
• Dimensions: 4 in (Width) x 1.3 in (Height) x 4 in (Length)
• Product Weight: 0.93 lbs
• UPC: 756460946456
• Installation: Mounts to standard 4" junction box with round plaster ring (provided by electrician)
• Location Suitability: Indoor dry locations only
• Compliance: NEC compliant junction boxes required, minimum 2" depth and 6 cubic inches volume

Features

• Provides power feed from remote transformer to lighting rail at run end
• Mounts perpendicular to the run on wall surface
• Includes universal round crossbar to align canopy holes with electrical box holes
• Compatible with low voltage wires from remote transformer
• Easy installation with wire nut connections and mounting screws (#8-32)
