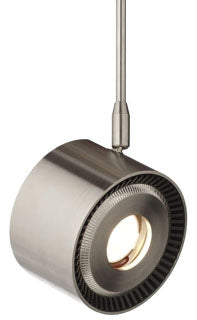

TECH LIGHTING 700MOISO9305018S-LED MO-ISO HD 930K 5018IN SN-LED LED Lighting Head

This product is a 16 watt, 850+ lumen directional LED lighting head designed for use in low-voltage lighting systems. It is suitable for indoor dry locations and offers precise beam control with 360° rotation and 90° pivot capabilities. The LED head is designed for easy field replacement and upgradeability via a solderless connector, minimizing waste by retaining the heat sink with the fixture. This lighting solution is ideal for electrical distributors and lighting solution providers seeking efficient, durable, and adaptable LED components for wire and cable integrated systems or switchgear applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOISO9305018S-LED
• Power Consumption: 16 watts LED
• Lumen Output: 850+ lumens
• Color Temperature: 3000 K
• CRI: 80+
• Beam Spread: 20°, 30°, 50°
• Dimensions: 2.8 in (Width) x 3.6 in (Height) x 3.6 in (Length)
• Weight: 1.58 lbs
• Rotation: 360° rotation, 90° pivot
• Dimming: Dimmable to 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Lens Holder: Integrated, accommodates one lens or louver (sold separately)
• Warranty: 5 years
• ETL Listed for indoor dry locations

Features

• Machined aluminum housing with extruded aluminum heat sink for thermal management
• Field-replaceable and upgradeable LED module via solderless connector
• Heat sink remains with fixture to reduce waste at end of lamp module life
• Modern industrial aesthetic with satin nickel finish
• Compatible with various beam spreads for tailored lighting applications
