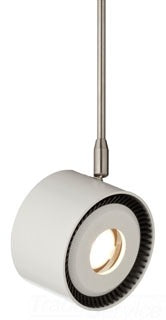

TECH LIGHTING 700MOISO9305003W-LED MO-ISO HD 930K 503IN WH-LED Directional LED Head

This product is a 16 watt, 850+ lumen directional LED head designed for precision lighting applications. It is suitable for indoor dry locations and integrates seamlessly with lighting solutions offered by electrical distributors and switchgear suppliers. The luminaire features a machined aluminum housing with an extruded aluminum heat sink, providing functional performance with a modern industrial aesthetic. The LED module is field-replaceable and upgradeable via a solderless connector, minimizing waste by retaining the heat sink with the fixture. The head offers 360° rotation and 90° pivot to direct light precisely. It supports dimming to 10% with compatible low-voltage electronic or magnetic dimmers (transformer dependent).

Specifications

• Manufacturer Part #: 700MOISO9305003W-LED
• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• CRI: 80+
• Beam Spread: 50°
• Dimensions: 2.8 in (width) x 3.6 in (height) x 3.6 in (length)
• Product Weight: 1.58 lbs
• Life: 50,000 hours to L70
• Dimming: 10%
• Finish: White
• Warranty: 5 years
• UPC: 884655327114

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Field-replaceable and upgradeable LED module with solderless connector
• Heat sink remains with fixture to minimize waste
• Integrated lens holder accommodates one lens or louver (sold separately)
• Dimmable to 10% with low-voltage electronic or magnetic dimmers
• ETL listed for indoor dry locations
