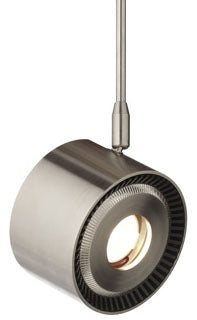

TECH LIGHTING 700MOISO8305012S-LED MO-ISO HD 830K 5012IN SN-LED Directional LED Head

This Tech Lighting 700MOISO8305012S-LED is a 16-watt directional LED head designed for precise lighting applications. It features an 850+ lumen output with a 3000K color temperature and 80+ CRI, suitable for indoor dry locations. The fixture is engineered with a machined aluminum housing and an extruded aluminum heat sink to optimize thermal management and longevity. Its design allows 360° rotation and 90° pivoting to direct light efficiently, making it ideal for lighting distributors, lighting solution providers, and switchgear suppliers seeking versatile, high-performance LED heads for wire and cable lighting systems.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• CRI: 80+
• Beam Spreads: 20°, 30°, 50°
• Dimensions: Width 2.8 in, Height 3.6 in, Length 3.6 in
• Product Weight: 1.58 lbs
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Warranty: 5 years
• ETL listed for indoor dry locations

Features

• Machined aluminum housing with extruded aluminum heat sink for optimal heat dissipation
• Easily field-replaceable and upgradeable LED module with solderless connector
• Heat sink remains with fixture to minimize waste at end of lamp module life
• 360° rotation and 90° pivot for precise beam direction
• Integrated lens holder accommodates one lens or louver (sold separately)
• Dimmable to 10% with compatible low-voltage dimmers
• Modern satin nickel finish
