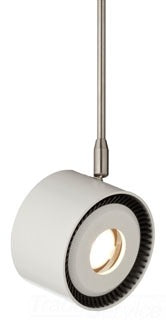

TECH LIGHTING 700MOISO8305003W-LED MO-ISO HD 830K 503IN WH-LED Directional LED Head

The TECH LIGHTING 700MOISO8305003W-LED is a 16-watt directional LED head designed for precision lighting applications. It is suitable for indoor dry locations and ideal for use with low-voltage lighting systems. This product is well-suited for electrical distributors and lighting solutions providers seeking efficient, field-upgradeable LED heads compatible with monorail track systems. The fixture features a rotatable and pivoting head for flexible beam direction, supporting various beam spreads to meet specific lighting needs.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOISO8305003W-LED
• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• CRI: 80+
• Beam Spread Options: 20°, 30°, 50°
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Life: 50,000 hours to L70
• Warranty: 5 years
• Dimensions: 3.6 in (height) x 2.8 in (width) x 3.6 in (length)
• Weight: 1.58 lbs
• Finish: White
• UPC: 884655326858

Features

• Directional LED head with 850+ lumens output for focused illumination
• Precision-machined aluminum housing with integrated heat sink for thermal management
• 360° rotation and 90° pivot for precise beam aiming
• Field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder accommodates one lens or louver (sold separately)
• Minimizes waste by retaining heat sink with fixture after lamp module replacement
• ETL listed for indoor dry locations
