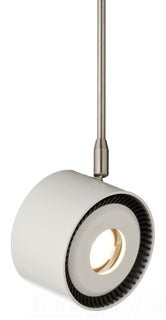

TECH LIGHTING 700MOISO8303003W-LED MO-ISO HD 830K 303IN WH-LED LED Lighting Head

This product is a 16-watt directional LED lighting head designed for use in low-voltage lighting systems. It is suitable for indoor dry locations and offers precise beam control with 360° rotation and 90° pivot capabilities. The luminaire features a sleek design with a heat sink that enhances functional performance and minimizes waste by remaining with the fixture. Ideal for electrical distributors and lighting solutions providers, this LED head integrates easily into wire and cable systems and is compatible with low-voltage electronic or magnetic dimmers.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOISO8303003W-LED
• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 800+ lumens
• CRI: 80+
• Beam Spreads: 20°, 30°, 50°
• Dimensions: 2.8 in (Width) x 3.6 in (Height) x 3.6 in (Length)
• Weight: 1.58 lbs
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Finish: White
• ETL Listed for indoor dry locations
• Warranty: 5 years

Features

• Directional LED head with 850+ lumen output
• Heat sink remains with fixture to minimize waste
• Easily field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder accommodates one lens or louver (sold separately)
• 360° rotation and 90° pivot for precise beam control
• Sleek, modern design suitable for various lighting applications
• Dimmable to 10% for flexible lighting control
