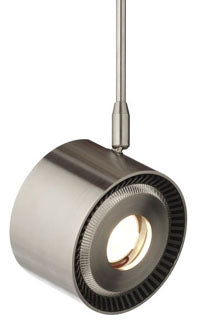

TECH LIGHTING 700MOISO8275003S-LED MO-ISO HD 827K 503IN SN-LED LED Lighting Head

The TECH LIGHTING 700MOISO8275003S-LED MO-ISO HD 827K 503IN SN-LED is a precision-engineered 16 watt directional LED lighting head designed for indoor dry locations. It is ideal for electrical distributors and lighting solutions providers seeking efficient, adjustable LED fixtures compatible with monorail systems. The fixture features a machined aluminum housing with an integrated heat sink, allowing 360° rotation and 90° pivot for precise beam direction. The LED module is field-replaceable and upgradeable via a solderless connector, minimizing waste and maintenance costs. This lighting head supports dimming down to 10% with low-voltage electronic or magnetic dimmers (transformer dependent), making it suitable for advanced lighting control systems.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• CRI: 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10%
• Warranty: 5 years
• Dimensions (WxHxL): 2.8 in x 3.6 in x 3.6 in
• Product Weight: 1.58 lbs
• ETL Listed for indoor dry locations

Features

• Directional LED head with precision heat sink design for optimal thermal management
• Field-replaceable and upgradeable LED module with solderless connector to reduce waste
• 360° rotation and 90° pivot for flexible beam aiming
• Integrated lens holder accommodates optional lenses or louvers (sold separately)
• Dimmable to 10% with compatible low-voltage electronic or magnetic dimmers
• Machined aluminum housing with satin nickel finish for durability and aesthetic appeal
• Suitable for monorail lighting systems
