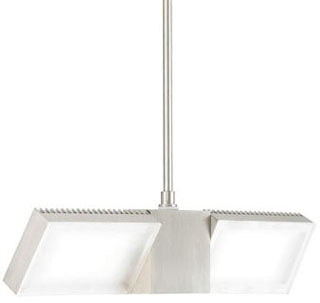

TECH LIGHTING 700MOIBISFEDL318S MO-IBIS FLE DBL LED3000 18 S LED Lighting Fixture

The TECH LIGHTING 700MOIBISFEDL318S MO-IBIS FLE DBL LED3000 18 S is a precision-engineered LED lighting fixture designed for indoor dry locations. Constructed of die-cast aluminum, it offers advanced lighting solutions with adjustable heads for directional illumination. Suitable for electrical distributors and switchgear suppliers focusing on wire and cable integration in lighting systems, this fixture is ideal for commercial and architectural lighting applications requiring efficient, dimmable LED performance.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MOIBISFEDL318S
• Power Consumption: 20 watts (double version)
• Color Temperature: 3000 K
• Output: 1400 lumens
• Efficiency: 70 lumens per watt
• Color Rendering Index (CRI): 80
• Life: 50,000 hours to L70
• Dimming: 10% minimum with low-voltage electronic or magnetic dimmer
• Weight: 1.33 lbs
• Dimensions (Double Flood): Height 10.3" (261 mm), Width 3.2" (81 mm)
• Certification: ETL listed for indoor dry locations

Features

• Die-cast aluminum construction for durability and heat dissipation
• Independent pivoting LED modules on double version for precise light direction
• Vertical pivot up to 330°, horizontal rotation up to 360°
• Available in flood or asymmetric wall wash light distributions
• Embedded lens to diffuse glare and minimize shadowing while maintaining efficiency
• Compatible with low-voltage dimmers for flexible lighting control
• Minimalist design recognized with Lightfair Innovation Award for design excellence
