TECH LIGHTING 700MOHEL4024S-LED MO-HELIOS 40 24 IN SN-LED Directional LED Head

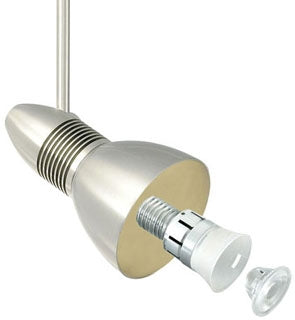

The TECH LIGHTING 700MOHEL4024S-LED MO-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. Ideal for use by electrical distributors and switchgear suppliers, this fixture head features a field-replaceable LED module with a screw-in base for easy maintenance. The head rotates 360° and pivots 260°, allowing flexible beam direction. It is suitable for indoor dry locations and integrates seamlessly with monorail systems. Accessories for customization are available separately.

Specifications

• Power Consumption: 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread: 40°
• Candle Power: 550 (40° beam)
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Product Weight: 0.29 lbs
• Dimensions: Length 2.2" (55 mm)
• Finish: Satin Nickel
• ETL Listed for Indoor Dry Locations
• UPC: 884655040945
• Manufacturer Part #: 700MOHEL4024S-LED

Features

• Field-replaceable LED lamp module minimizes waste and simplifies maintenance
• Aluminum heat sink provides effective thermal management
• 360° rotation and 260° pivot for precise beam aiming
• Compatible with multiple accessory styles and colors for custom lighting solutions (sold separately)
• Dimmable to 10% for flexible lighting control
• Includes 4" round flush canopy for easy installation
• Long lifespan exceeding 30,000 hours to L70 reduces replacement frequency
• Designed for use with Tech Lighting monorail systems
