TECH LIGHTING 700MOHEL4018Z-LED MO-HELIOS 40 18 IN BZ-LED LED Directional Head

The TECH LIGHTING MO-HELIOS 40 18 IN BZ-LED is a 6-watt directional LED head designed for precision lighting applications. Ideal for use in lighting solutions, this LED head is suitable for indoor dry locations and is compatible with monorail systems. It features a field-replaceable LED module with a screw-in base, ensuring easy maintenance and minimizing waste. The head rotates 360° and pivots 260° for flexible beam direction, making it suitable for use by electrical distributors and switchgear suppliers seeking reliable wire and cable lighting components.

Specifications

• Power Consumption: 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread: 40°
• Candle Power: 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.29 lbs
• Dimensions: 2.2" length (55 mm)

Features

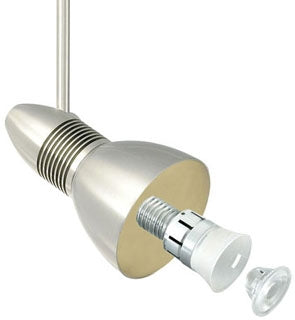

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• Head rotates 360° and pivots 260° for precise beam control
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% with compatible low-voltage dimmers
• ETL listed for indoor dry locations
